Overview

What is a Palomat^® pallet magazine?

The PALOMAT pallet magazine is an automated pallet handling device that stacks and de-stacks empty pallets one at a time, entirely at floor level — eliminating the need for manual pallet lifting. It removes one of the most common and injury-prone tasks in industrial logistics: moving, stacking and distributing empty pallets.

Health & Safety

No manual stacking or de-stacking of pallets
Fewer back injuries
No jammed fingers or broken toes

Cost Reduction

Fewer broken pallets
Less absence due to illness

Increased Efficiency

Space saving and tidy workplace
Optimized pallet flow
Less truck driving
Reduced time per pallet

How does Palomat work?

01

Insert a pallet

Using a hand pallet truck, electric stacker or forklift, slide a pallet in at floor level. No special equipment or training required.

02

Automatic lifting

The machine lifts the pallet stack upward automatically, making room for the next pallet to be inserted.

03

Destack on demand

The machine lowers the stack and releases one pallet at floor level, ready for immediate use — no forklift needed.

04

Full stack handling

A complete stack of 15 or 25 pallets can be inserted or removed at once using only a hand pallet truck.

Are you handling pallets in your facility?

2

Models

Product range

Five main models to match every pallet flow requirement.

2.1

PALOMAT® Greenline

Fully automatic · AC operated

The most popular model. Simply plug into any standard 230 V outlet. Handles 15 or 25 pallets with no installation required.

Capacity500-700 kg
No of pallets15 or 25
Dimensions (mm)1485 x 1350 x 2372
Power220-240 V AC, 50 Hz
Cold room optionFrost-proof to -25°C

2.2

PALOMAT® Flexomatic

Fully automatic · Air + AC operated

For pallet flows where compressed air and electrical operation are preferred, with the same floor-level handling principle.

Capacity500-800 kg
No of pallets15 or 25
Pallet sizes1200x800 / 1200x1000
Power100-240 V AC
OperationAir + AC

2.3

PALOMAT® 5

Fully automatic · AC operated

A compact PALOMAT setup for automated pallet stacking and de-stacking in everyday production environments.

Capacity500-700 kg
No of pallets15 or 25
Pallet sizes1200x800 / 1200x1000
Power220-240 V AC, 50 Hz
OperationAC only

2.4

PALOMAT® Double Up

Fully automatic · Double pallet flow

Designed for handling two pallet stacks in one flow, reducing manual handling while keeping empty pallets ready at floor level.

Capacity2 x 500 kg
No of pallets2 x 15
Pallet size2 x 1200x800
Power220-240 V AC, 50 Hz
OperationAC only

2.5

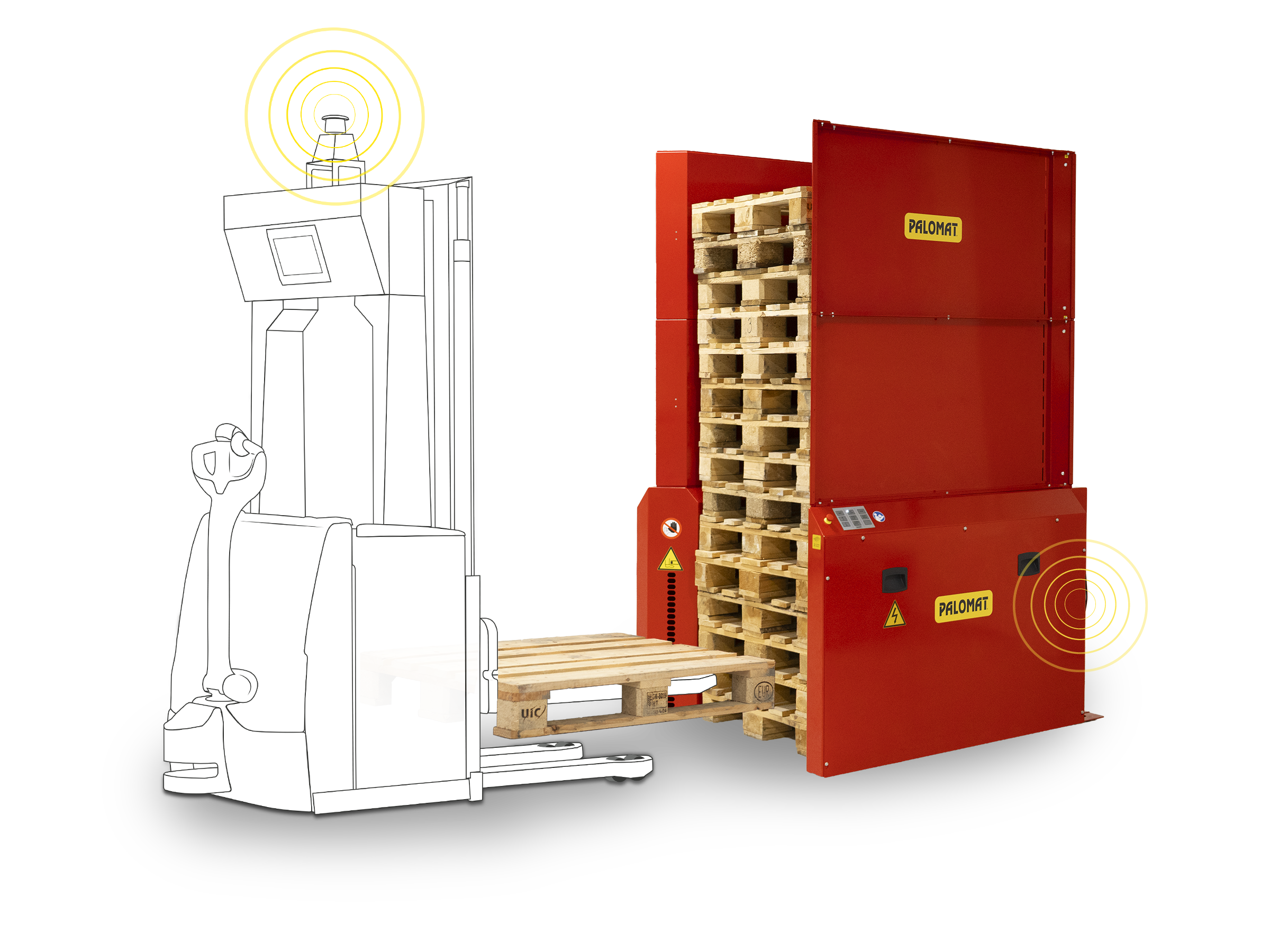

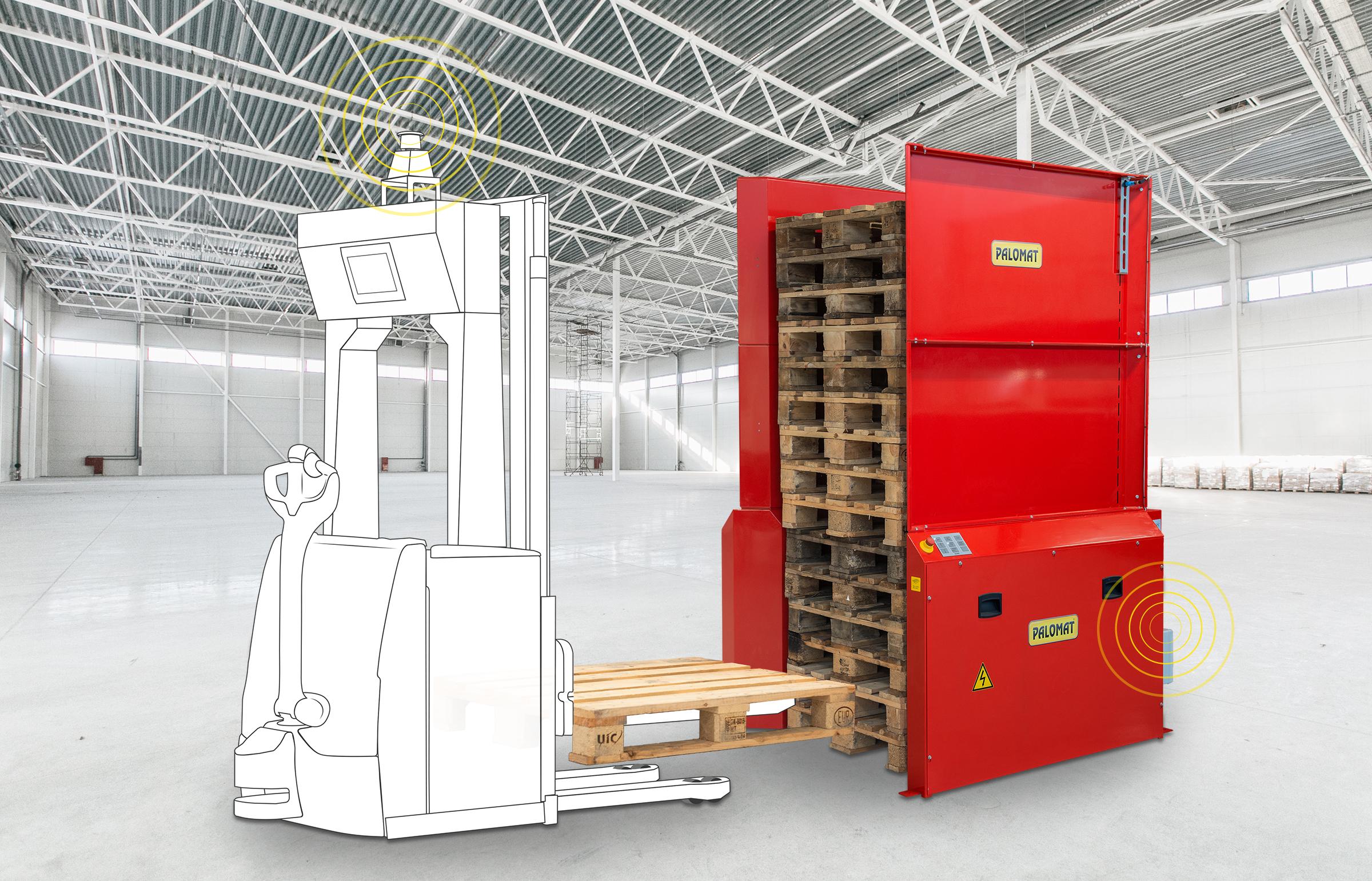

PALOMAT® AGV

Fully automatic · AGV-integrated · AC operated

The perfect add-on for automated guided vehicles. Delivered with an interface for external equipment, enabling independent signal exchange between the PALOMAT® and any AGV brand.

Capacity500 kg
No of pallets15
Dimensions (mm)1485 x 1350 x 2372
Power220-240 V AC, 50 Hz
CommunicationOPC UA · Ethernet/LAN

Technical specifications at a glance

Model	Operation	Pallet size (mm)	Capacity	Pallets	Power
2.1Greenline	AC only	1200×800 / 1200×1000	500–700 kg	15 or 25	220–240 V AC, 50 Hz
2.2Flexomatic	Air + AC	1200×800 / 1200×1000	500–800 kg	15 or 25	100–240 V AC
2.3PALOMAT 5	AC only	1200×800 / 1200×1000	500–700 kg	15 or 25	220–240 V AC, 50 Hz
2.4Double Up	AC only	2 × 1200×800	2 × 500 kg	2 × 15	220–240 V AC, 50 Hz
2.5AGV	AC + AGV interface	1200×800 / 1200×1000	500 kg	15	220–240 V AC, 50 Hz

Options

Options adapted to your needs

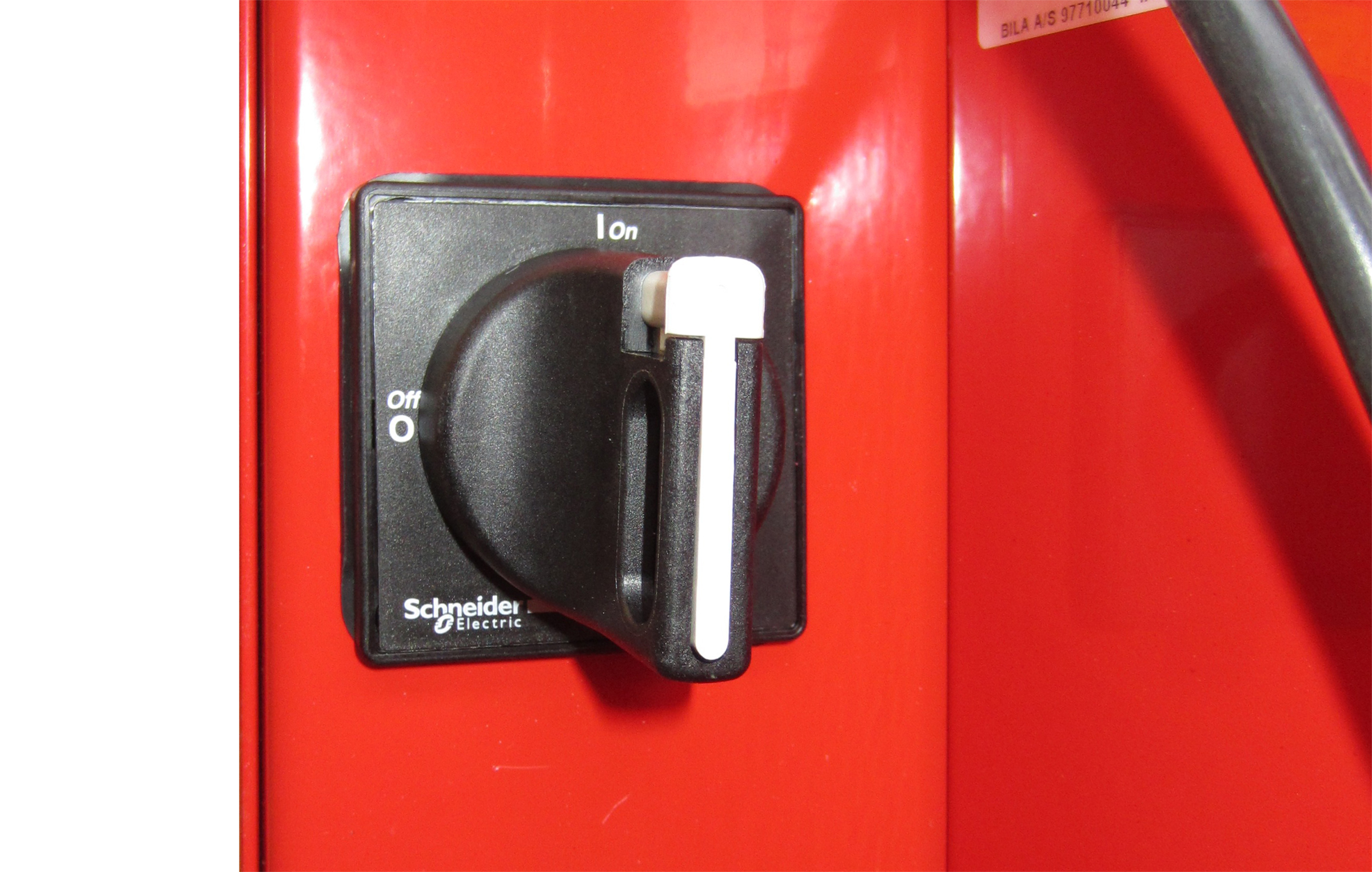

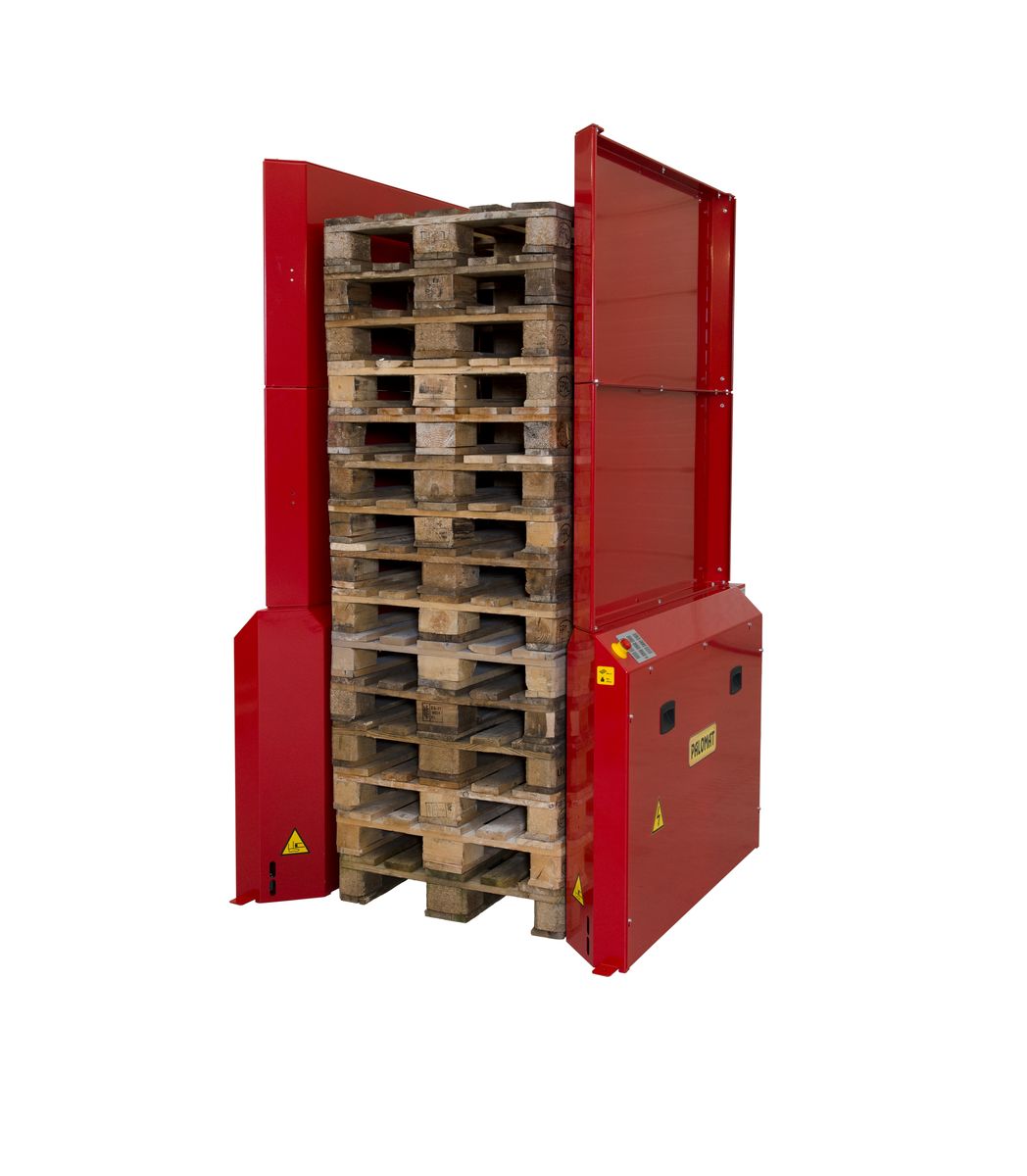

Safety frame with gate for 15 pallets

Prepared for information via SMS/E-mail

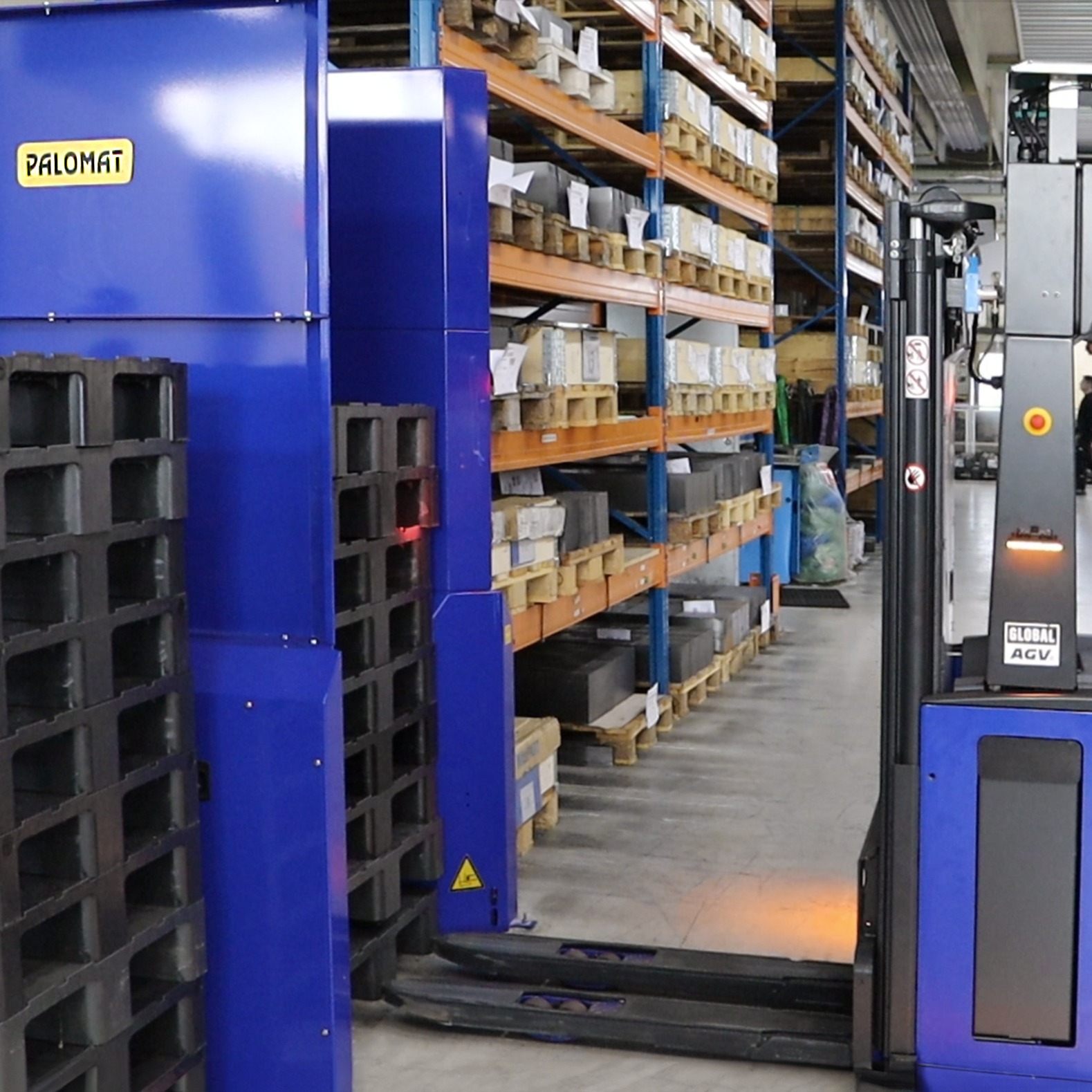

Prepared for AGV 15 pallet/500kg

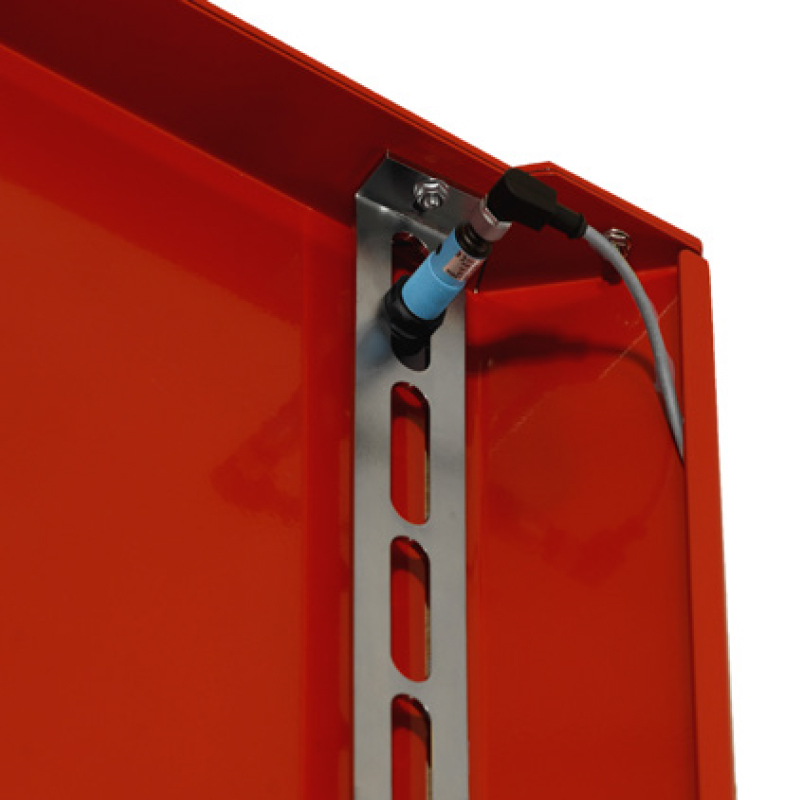

Signal tower incl. maximum indicator

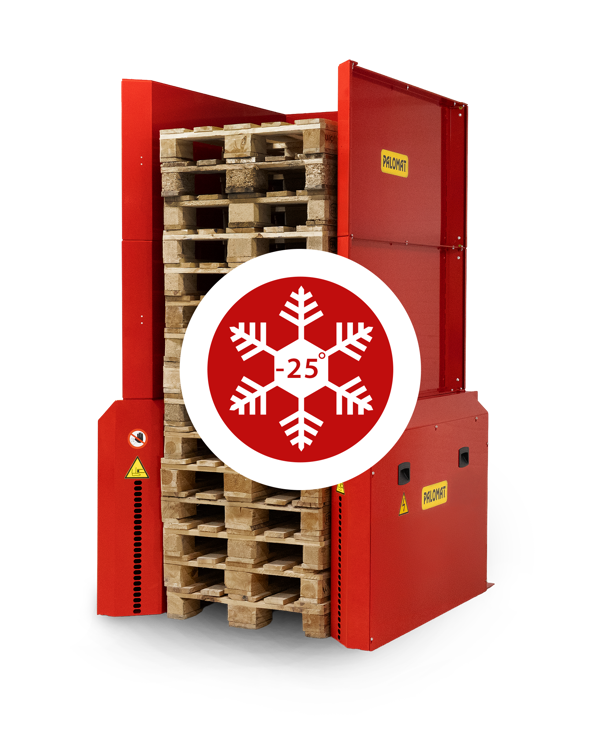

Pallet handling in cold environment down to 25°C

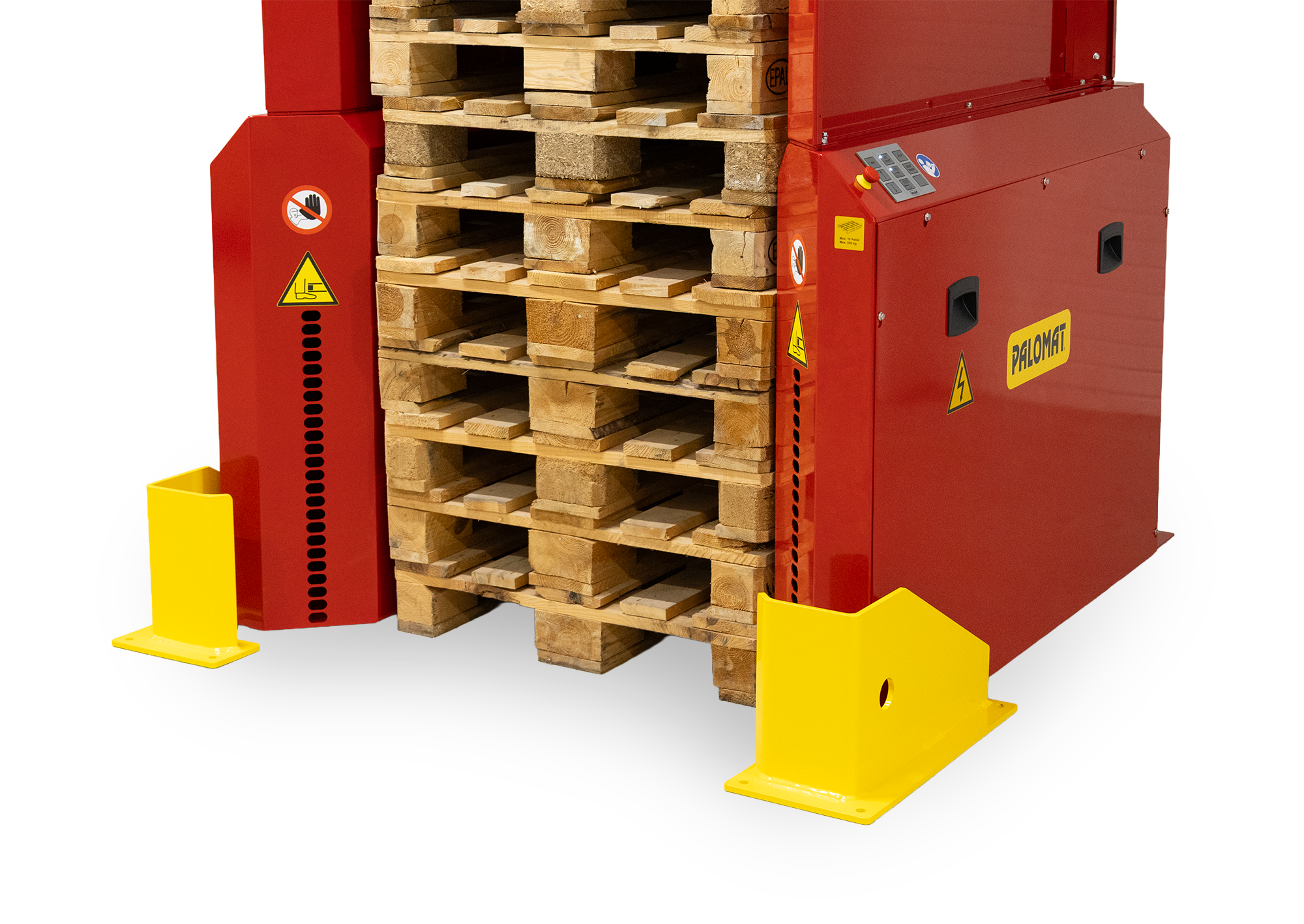

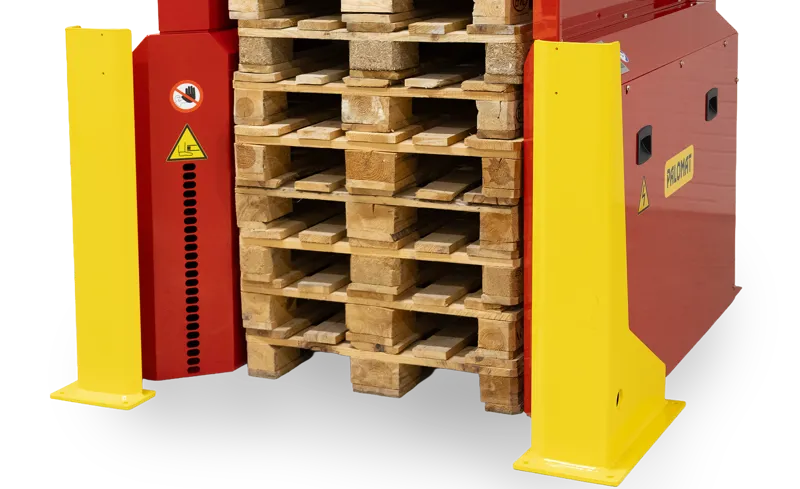

Truck protection

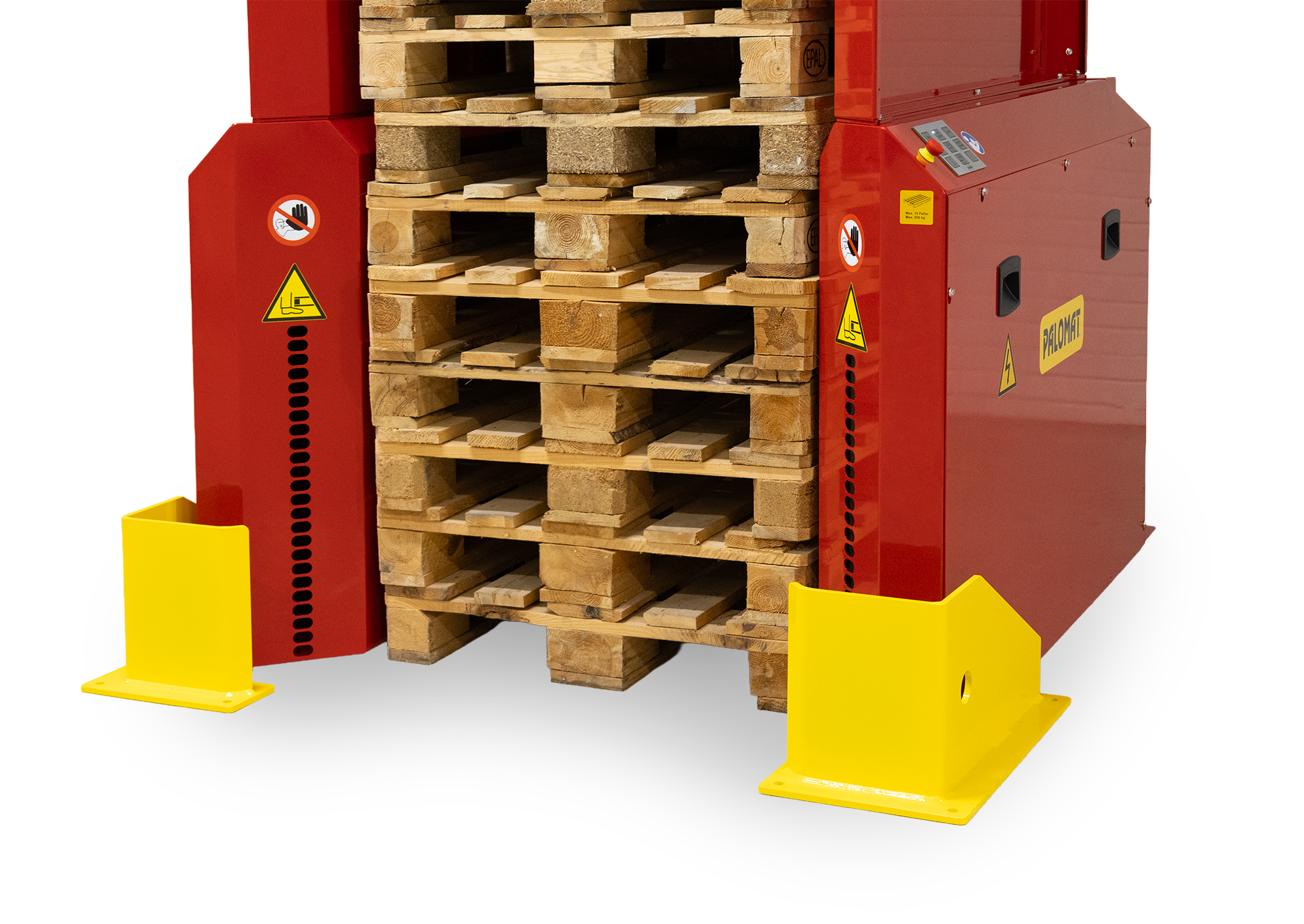

Truck protection - medium

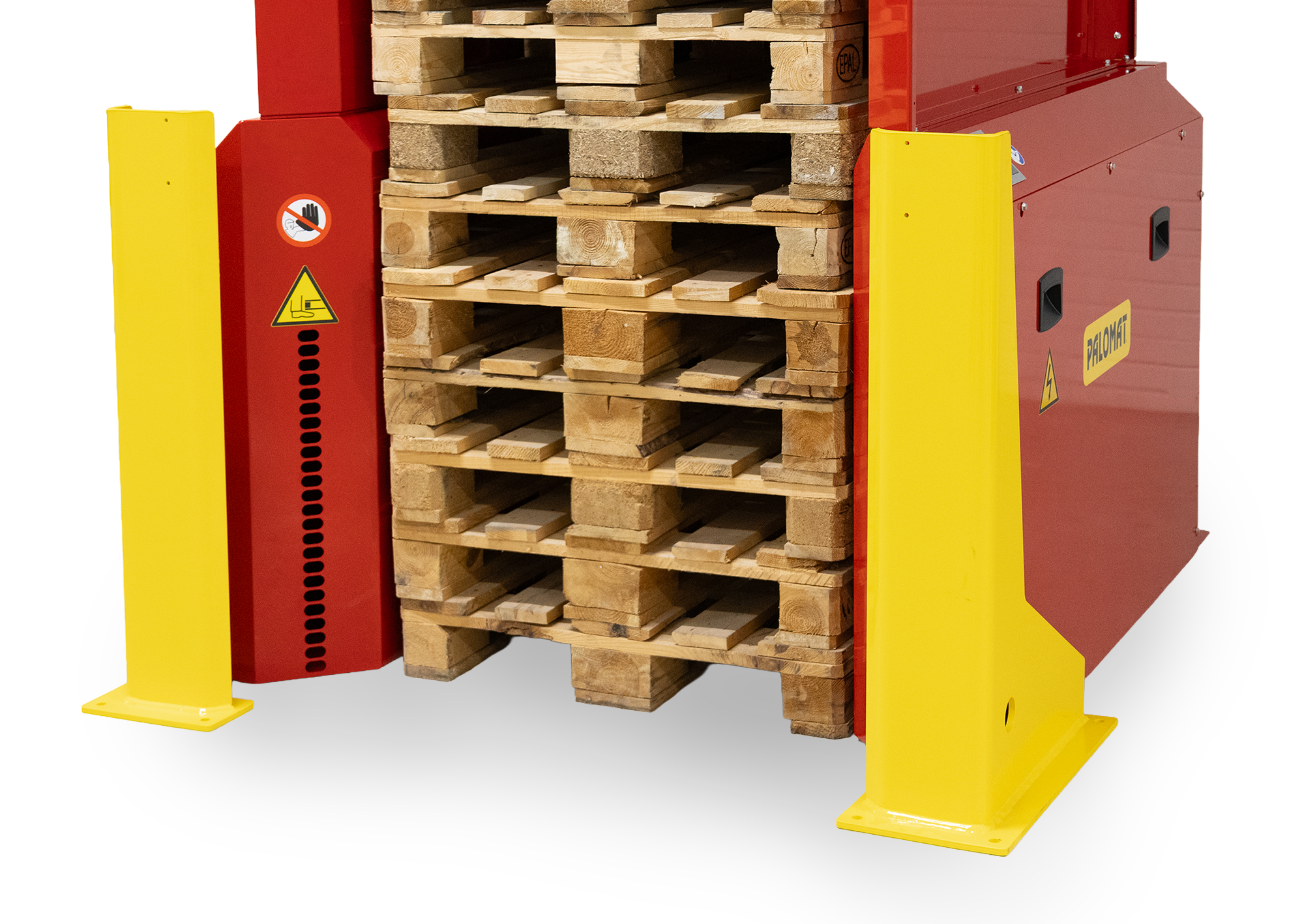

Truck protection - large

Different standard colors

Select model

How to choose the right Palomat?

You need to stack & destack single pallets using only electricity → Greenline

You have compressed air available and want full automation → Flexomatic

You need to handle 2–5 pallets at a time → PALOMAT 5

You need to handle two parallel pallet flows simultaneously → Double Up

You use automated guided vehicles (AGVs) and need seamless pallet integration → PALOMAT AGV

You operate in a cold room environment (down to −25°C) → Greenline frost-proof

You use non-standard pallet sizes → Custom solution – contact TEOL

Tell us about you

4 questions
about your process

Help us understand your operation
so we can find the right fit for you.

1

Current pallet handling Do you handle pallets in your company? If yes, how are you handling your empty pallets today?

2

Manual palletization Does manual palletization occur? If yes, can you describe the workflow — and have you done anything to optimize pallet handling?

3

Volume & cost How many pallets does the company handle per day or week? What is your cost regarding pallet handling?

4

Pallets per facility How many new pallets are used in production, stock, goods reception or the packaging facility?

Benefit from automating your pallet handling process.

3

Watch

Video gallery

See Palomat in action across different environments and use cases.

Find out which solution fits you.

4

Free trial

Try it before you buy it

You haven't decided to purchase the system yet, but would you like to get to know it better?
